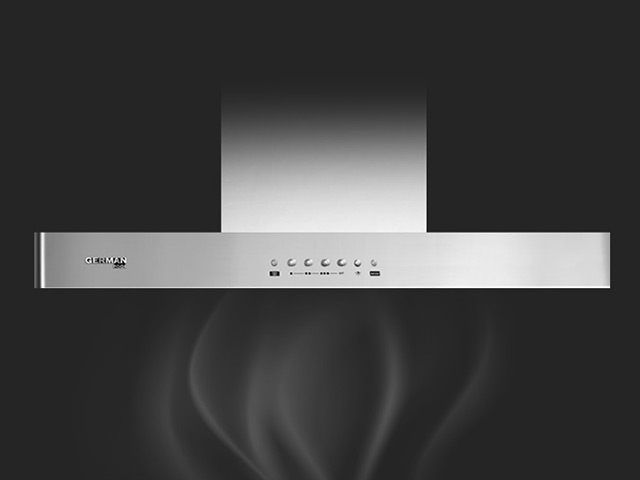

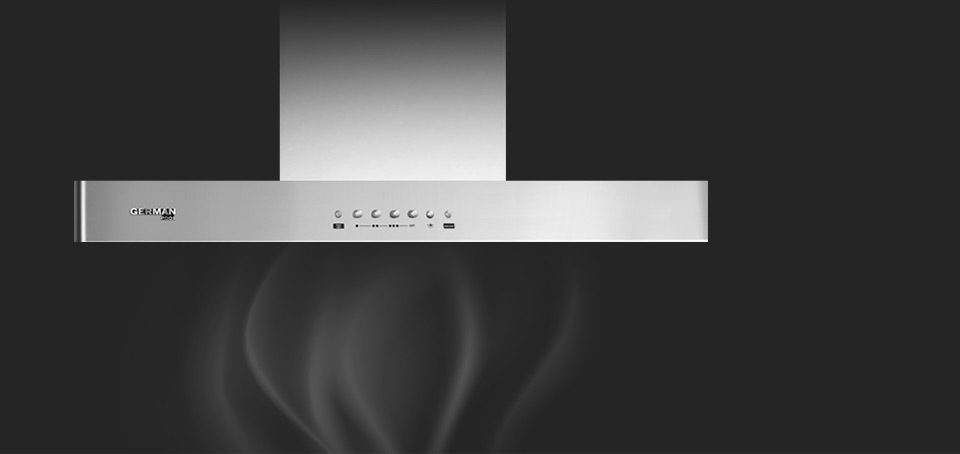

Getting Rid of Fume and Smoke Thoroughly

The RHM Ultra Series features 2,800 R.P.M. turbo-speed motors with 4 air inlets and advanced panel hole design for superb extraction effect. It also comes with heat-activated auto start function which saves energy effectively.

2,800 R.P.M. Turbo-Speed Motor

The Ultra Series comes with turbo-speed motors of 2,800 R.P.M. Its extraction power is higher than that of other range hoods of the same level by 70%.

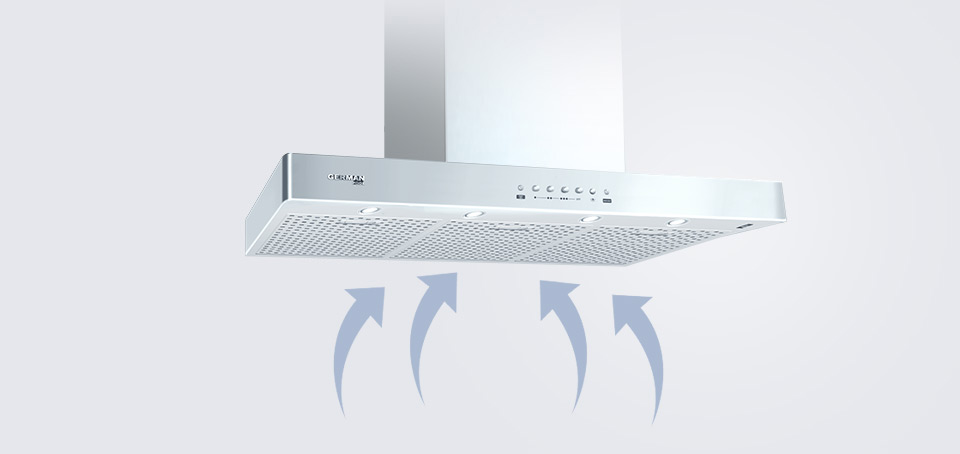

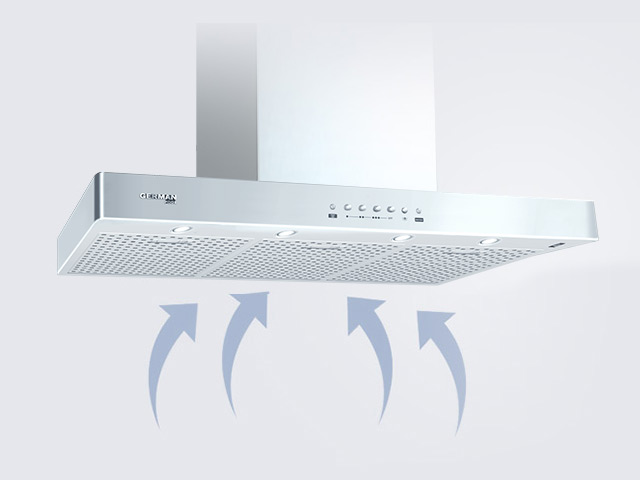

4 Air Inlet Motor & Advanced Panel Hole Design

The 4-air-inlet motor and advanced panel hole design brings about superb extraction effect.

Brand New Features

Stainless Steel Body

The stainless steel body is durable and easy to clean.

Hidden Oil Collector

The hidden oil collector makes the range hood aesthetically appealing.

“Thermo-Sense” Auto Start

When WRZ detects a temperature of 55-60C under the hood, it will automatically run for approximately 3 minutes.

LED Lighting

The LED lighting is energy-saving and offers great brightness. It is more environmentally-friendly than quartz halogen bulbs.

2-Year Warranty On Motor

Motors of the RHM Series have a maximum speed of 2,800 R.P.M. The motor produces powerful extraction force and comes with a 2-year warranty.

Installation Diagram

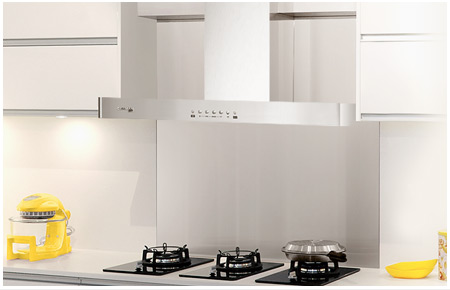

Installation

We provide professional installation service. For more details, please click here:

Installation Fee

Specifications
  • Information
  • Functions & Features
  • Others
  • Specifications are subject to change without prior notice. Please refer to the Instruction Manual for Warranty Information.

FAQ

What is the recommended height for Range Hood installation?
The recommended height for Range Hood positioning is 700±50mm from the furnace surface.
How to reduce oil leakage of my Range Hood?
Check if the oil collection cup is full. After cooking is finished, keep the range hood running for about 10 minutes in order to prevent oil from accumulating inside.
The light is on but the fan/motor is not running. Why?
Remove any obstruction from the fan wheel may just solve the problem. Or if there is a burnt fuse, damaged motor or other broken part, contact a licensed technician for a repair or replacement.
There is vibration in the Range Hood. What is going on?
Inproper installation of the hood body, or unstable fan wheel and motor position all may contribute to vibration. Re-install or adjust the position of fan wheel and motor may solve it. When fan wheel is damaged and become imbalanced, contact a licensed te
Why do I find no oil in the oil collection cups but on the edges of the Range Hood panel?
The Range Hood might not be properly installed. The front of the unit must be slightly tilted up in order to let the oil flow down to the collection cups, which are located at the back of the unit. Please contact a licensed technician to re-install the ho
There is air return of the range hood. Why?
Air blocked by air damper at exhaust outlet causes air return.
The performance of my Range Hood does not seem to be very satisfactory. Why and how can I improve it
Your Range Hood may have been installed at a position that is too high or distant from the source of fumes. Contact a licensed technician to re-position it.
The Range Hood or its light does not turn on after I switch on the power, what should I do?
First, make sure whether the power is properly connected. If so, check and see if the light bulb needs a replacement. If the power cable is torn or not appropriately connected, contact a licensed technician to repair or replace it.
Why does my range hood operate at one speed and not at another?
Malfunction of the on/off switch or improper connection of the circuit can be the cause of this problem. Contact a licensed technician for a repair or replacement.
How to remove tape stain on my Range Hood?
Wipe in one direction with alcohol or auto-polish cleans.
