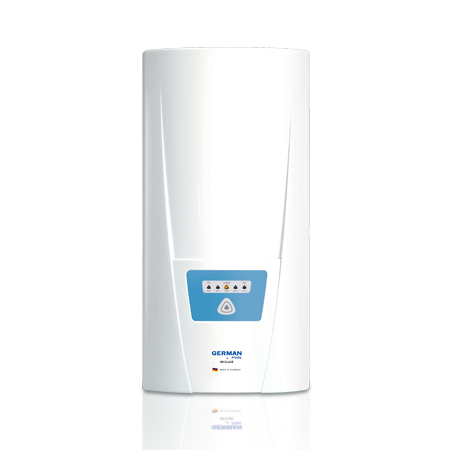

Water Heater (3-Phase Power Supply) - DCX

  • Made in Germany
  • Various connection possibilities
  • Attractive slim design
  • Ideal for kitchen sink, bathroom wash basin etc.
  • Optional cable remote control module available
  • IES® bare wire heating system
  • Electronically-controlled
  • Multiple Power System MPS® : power rating can be set at 16.2 – 25.8 kW (380 – 415 V) / 24.4 – 27 kW (380 – 400 V) upon installation
  • Easy-to-use single-key control panel for temperature selection: 35°C, 38°C, 42°C, 48°C and 55°C
  • Twin Temperature Control (TTC® ) for precise hot water supply
  • Power is automatically adjusted to the flow rate and inlet temperature
  • Electronic safety system with air bubble detection, temperature and pressure cut-off
  • Optional cable remote control module available
  • 3-phase electric power
1 of 2

Specifications

  • Information
  • Model / Sub-Model
    DCX
  • Power Setting
    18 kW | 21 kW | 24 kW | 27 kW
  • Voltage
    380-415 V (18 kW) | 380-415 V (21 kW) | 380-415 V (24 kW) | 380-400 V (27 kW)
  • Electric Power
    25-27 A (18 kW) | 29-30 A (21 kW) | 33-36 A (24 kW) | 37-39 A (27 kW)
  • Power
    16.2-19.4 kW (18 kW) | 19.0-22.6 kW (21 kW) | 21.6-25.8 kW (24 kW) | 24.4-27.0 kW (27 kW)
  • Power Supply
    3 Phase
  • Hot Water Flow Rate Per Minute*
    9.2 L (18 kW) | 10.7 L (21 kW) | 12.3 L (24 kW) | 13.8 L (27 kW)
  • Min-Max Flow Rate
    2.5-8 L/min
  • Required Cable Size
    4 mm² (18 kW) | 4 mm² (21 kW) | 6 mm² (24 kW) | 6 mm² (27 kW)
  • Colour
    White
  • Dimensions
    (H) 466 (W) 231 (D) 97 mm
  • Packing Dimensions
    (H) 533 (W) 290 (D) 164 mm
  • Net Weight
    3.3 kg
  • Net Weight: Filled with Water
    3.7 kg
  • Gross Weight With Packing
    4.7 kg
  • Functions
  • Temperature Adjustment
    35 / 38 / 42 / 48 / 55 °C (5 pre-set temperatures)
  • Testing Pressure
    10 Bar
  • VDE Approval / Class
    IP 25 / Class 1
  • Other Certification
    CCC
  • Country of Origin
    Germany
  • Others
  • Certification / Standard
    VDE/CE
  • Warranty Term
    3 Years **
  • * Temperature increase @ Δt=28K e.g. from 12 to 40°C.
  • ** Upon purchases made after 1 November 2015, customers will enjoy a 3-year warranty on all parts plus free on-site and parts replacement services in the first year.
  • Under normal working conditions, incoming pressure should not exceed 0.6 MPa. Otherwise, a separate pressure control device is necessary. When incoming water pressure exceeds 0.6 MPa, German Pool will not provide any repair service until a pressure contro
  • Specifications are subject to change without prior notice. Please refer to the Instruction Manual for Warranty Information.
